Inteli DC4/4 (non-UL)

Order code: EM1DC44XBDBNU

Inteli DC4/4 is an extension module, type transducer, equipped with analog inputs and analog outputs. The module can be used with various types of controllers, purposed for applications where we need to precisely measure the direct voltage and direct current (DC Voltage, DC Current).

The specific Inteli DC4/4 accessory is not UL certified. The UL certified version will be available shortly.

  • 2 galvanically isolated input measuring channels
  • Unipolar voltage measurement and bipolar current measurement per channel
  • High accuracy and resilience to signal distortion
  • Universal use with standard shunt resistors
  • Marine certified
Inteli DC4/4 Datasheet

English (2 Apr 2024)

Inteli DC4/4 Global Guide

English (2 Apr 2024)

BV Certification - Inteli DC4/4

English (29 Apr 2024)

Show resource hub for this product
  • Overview
  • Overview
    • Inteli DC4/4 (non-UL)
    Overview

The InteliDC 4/4 offers:

  • Analog Inputs
      • 4 channels – 2 for Voltage and 2 for Current measurement
      • Voltage input up to 1500 VDC – direct measurement
      • Current loop input: Measurement with external shunt up to 3000ADC (100mV max voltage input from external shunt resistor)
  • Analog Outputs
      •  4 channels - 2 for Voltage and 2 for Current measurement
      •  4- 20 mA current loop output

Local support you can count on

Your operation depends on everything running smoothly. Our experts are here to make sure of that. We offer:

  • 24-hour support on working days
  • Local contacts in 179 countries
  • Remote and in-person trainings and a range of support materials
  • Expert consultation, troubleshooting, and much more
CONTACT TECHNICAL SUPPORT

Contact your local ComAp representative

Didn't find what you were looking for? Contact us, we’ll be happy to answer any questions you may have and help you with your business needs.

See Local Contacts

Interested in another country? Find your local representative.

You might also need

product image
InteliGen 1000 Marine
The InteliGen 1000 Marine is an advanced marine controller for managing and optimising onboard AC and DC power management systems. Setting a new standard in the marine industry, the InteliGen 1000 Marine can control and monitor different power sources in real time and manage their cooperation based on different requirements. The controller has pre-programmed applications and compatibility with Modbus devices, which ensures quick integration and easy commissioning of marine projects.

product image
InteliMains 1010 Marine
The InteliMains 1010 Marine is a marine breaker controller for managing and optimising onboard AC and DC power management systems. Setting a new standard in the marine industry, the InteliMains 1010 Marine can control and monitor different application breakers in real time and manage their cooperation with energy sources controllers based on different requirements. The controller has pre-programmed applications and compatibility with Modbus devices, which ensures quick integration and easy commissioning of marine projects.

product image
InteliSCADA

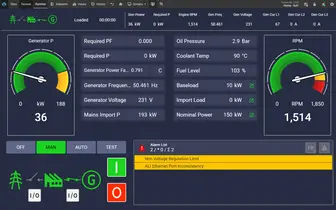

InteliSCADA is an intuitive software tool that enables quick and simple creation and monitoring of complex Supervisory Control and Data Acquisition (SCADA) systems for controlling industrial processes. The tool can be used to monitor locally both simple and advanced paralleling sites, regardless of the type of application.
