InteliVision 18Touch

InteliVision 18Touch

Order code: RD31840PBIE

This product is discontinued. Contact ComAp local representative for availability.

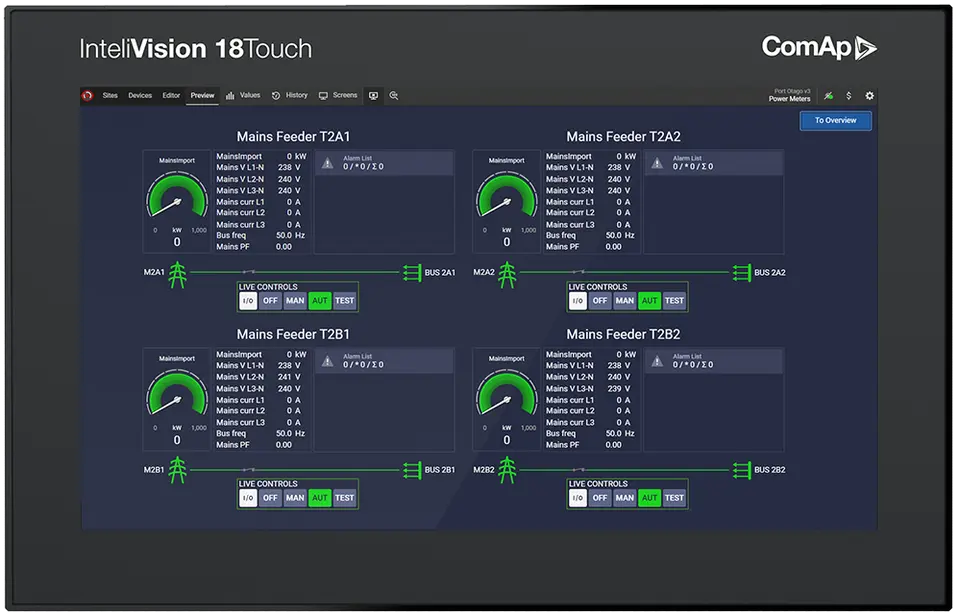

Get a comprehensive overview of your complex operations for any application with the InteliVision 18Touch remote display. Easy to install, configure and use, this 18,5“colour touchscreen display unit will support the control and monitoring of sites with multiple controllers and complex installations, such as CHP or Hybrid that have a large number of values that need to be measured. The InteliVision 18Touch comes with embedded PC Scada software enabling users to freely configure their screen with different types of items such as meters, bar graphs, numeric values, control buttons, pictures, etc.

Embedded PC Scada
Preinstalled IGS-LOG
Broad communication capabilities
Event-based history
Simple installation & configuration
Integrated mounting kit

InteliVision-18Touch-Datasheet

English (20 Feb 2023)

Manuals

3 files

English (25 Sep 2024)

InteliSCADA 2.9.0 New Features List

English (25 Sep 2024)

English (20 Feb 2023)

English (25 Sep 2024)

English (25 Jan 2023)

Show resource hub for this product

Overview
Related products

Overview
Related products

Optimised for quick and easy installation, configuration and use, the InteliVision 18Touch ensures safe monitoring of your controllers, gen-sets or breakers, with quickly accessible history logs and change of setpoints from a single location. It comes with an integrated mounting kit and can be mounted on a panel in a power distribution room or on a wall according to the VESA standard.

The InteliVision 18Touch offers:

Panel suitable for use with a wide range of ComAp controllers
Online remote monitoring
18,5“ LED touchscreen with 1366 × 768 pixels screen resolution
Broad operating temperature range from -10°C to +60°C
Powerful Intel® Celeron® quad core processor J1900
Communication available via standard interfaces such as Ethernet, RS232/485
Numerous connection ports: 3× USB, 2× mini-PCIe sockets, 1× CFast, 2× RS232/422/485/, 2x RJ45
Strong front panel protection compliant with IP66 ingress protection rating
Mounting support: panel/wall/stand/VESA 100mm × 100mm
Power input 12-30 VDC
Free pre-installed IGS-LOG for continuous logging of desired parameters
Possibility to configure all setpoints from just one device
History logs for easy and quick troubleshooting and issue detection
Full screen mode with lock protection/PIN
Onscreen keyboard
Compatible with Windows 10 IoT operating system
Compatible with the majority of ComAp’s controllers

For a complete list of all compatible controllers, see the DataSheet/Global Guide.

Alternative products

InteliVision 8

InteliVision 8, industrial operator panel equipped with 8” colour screen, is designed to support the monitoring and control of single gen-sets’ operations for various applications. A simple and easy-to-use plug&play solution, it provides comprehensive overview of all engine data, monitoring information and trend history. The InteliVision 8 is intended for the ComAp InteliGen NT, InteSys NT, InteliMains and InteliDrive family of controllers.

InteliVision 5 CAN

InteliVision 5 CAN is an easy-to-use industrial operator panel equipped with 5,7” colour screen for monitoring of single gen-sets for various applications. This intuitive plug&play solution with a CAN bus interface provides comprehensive visual overview of all engine data and monitoring information on a colourful display. The display has a robust and resilient design and can be used without any problems in environments with extreme conditions.

InteliVision 12Touch

Intuitive, easy-to-use and simple to configure, the InteliVision 12Touch is an industrial operator panel equipped with 12.1” colour, multi-touch screen. Compatible with the majority of ComAp’s controllers, it provides comprehensive visual overview to monitor and control single gen-sets for various applications.

InteliVision 5

InteliVision 5 is an easy-to-use industrial operator panel with a colour screen for monitoring of single gen-set for various applications. This robust and intuitive plug&play solution provides comprehensive visual overview of all engine data, monitoring information and trend history.

Accessories

InteliGen GSC-C

InteliGen GSC-C is a controller with broad communication capabilities for single or multiple diesel gen-sets operating in stand-by or parallel mode. Intended primarily for switchgear applications, this product controls, monitors and protects critical infrastructure installations such as datacentres, hospitals or banks. The InteliGen GSC-C is an earlier generation of our advanced controller InteliGen 1000.

InteliGen GSC

InteliGen GSC is a controller for single or multiple diesel gen-sets operating in stand-by or parallel mode. Intended primarily for switchgear applications, this product controls, monitors and protects critical infrastructure installations such as datacentres, hospitals or banks. The InteliGen GSC is an earlier generation of our advanced controller InteliGen 1000.

InteliSys GSC-C

The InteliSys GSC-C will help control your single or multiple gen-sets operating in stand-by or parallel mode. The controller has broad communication capabilities and enables secure remote control and monitoring. This product is intended for various installations, such as micro-CHP, complex datacentres, hospitals and banks.

InteliGen NT BaseBox

InteliGen NT BaseBox is a controller for single or multiple diesel gen-sets operating in stand-by or parallel mode. Intended primarily for switchgear applications, this controller will ensure secure remote monitoring of your critical infrastructure installations such as datacentres, hospitals or banks. The InteliGen NT BaseBox is an earlier generation controller of our advanced InteliGen 1000.

InteliGen NTC BaseBox

InteliGen NTC BaseBox is a controller with a broad range of communication capabilities for single or multiple diesel gen-sets operating in stand-by or parallel mode. Intended primarily for switchgear applications, this controller will ensure secure on-site and remote monitoring of your critical infrastructure installations such as datacentres, hospitals or banks. The InteliGen NTC BaseBox is one of the earlier versions of our advanced controller InteliGen 1000.

InteliDrive Mobile

Electronic controller for off-road vehicles and machinery.

InteliSys Gas

InteliSys Gas is designed to control, monitor and protect the operation of any type of gas engine and/or CHP (combined heat and power) unit. The control unit has broad communication capabilities, numerous specialised predefined functions for gas/CHP/generators; and it offers complete preprogramed control of the generating set, helping you save time with the configuration, commissioning and management of your project.

InteliSys NTC Hybrid

InteliSys NTC Hybrid is a controller for hybrid microgrid applications, supporting the combination of renewable energy sources with gen-sets. The controller can be used for both on-grid and off-grid applications to help optimise the use of renewable energy and reduce your carbon footprint.

InteliSys NTC BaseBox

InteliSys NTC BaseBox is a controller with a broad range of communication and PLC capabilities for single or multiple gen-sets operating in stand-by or parallel mode. Intended primarily for CHP and switchgear applications, it will help you with secure on-site and remote monitoring of various installations such micro CHP, datacentres, hospitals or banks.

InteliMains NTC BaseBox

InteliMains NTC BaseBox is a Mains/Utility/Tie-breaker protection and supervision controller with extensive communication capabilities. Acting as a Mains protection relay, the InteliMains NTC BaseBox synchronises sets of gen-sets to the Mains/Utility source. This product is an earlier generation of the InteliMains 1010 controller and it is intended for switchgear applications and complex, critical infrastructure installations, such as datacentres, hospitals or banks.

Related case studies

Case Studies

Backup Power for a Manufacturing Facility

Case Studies

QV1 Building Power System

Local support you can count on

Your operations depend on everything running smoothly. Our experts are here to make sure of that. We offer:

24-hour support on working days
Local contacts in 179 countries
Remote and in-person trainings and a range of support materials
Expert consultation, troubleshooting, and much more

Contact Technical support

Contact your local ComAp representative

Didn't find what you were looking for? Contact us, we’ll be happy to answer any questions you may have and help you with your business needs.

See Local Contacts

Interested in another country? Find your local representative.

Alternative products

InteliVision 12Touch

InteliVision 12Touch OEM

Intuitive, easy-to-use and simple to configure, the InteliVision 12Touch OEM is a marine-certified industrial operator panel equipped with 12.1” colour, multi-touch screen. Compatible with the majority of ComAp’s controllers, it provides comprehensive visual overview to monitor and control multiple gen-sets and engines for various applications.

InteliVision 8
